| 材質：SS400 |
 |
| |

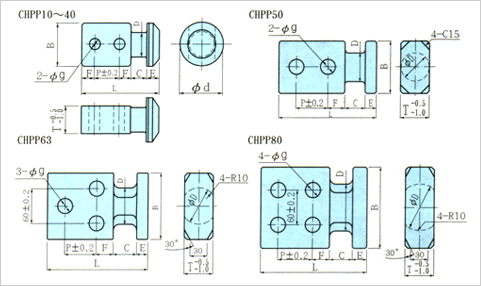

TYPE |
D |
d |
B |
T |
L |
C |
E |
F |
P |
g |
Kgf/1P |
CHPP |
10 |
10 |
28 |
28 |
18 |
50 |
10 |
8 |
8 |
16 |
7 |
160 |
12 |
12 |
32 |
32 |
20 |
56 |
10 |
8 |
10 |
18 |
9 |
360 |
16 |
16 |
36 |
36 |
24 |
67 |
13 |
8 |
12 |
22 |
11 |
460 |
20 |
20 |
40 |
40 |
26 |
88 |
18 |
10 |
15 |
30 |
14 |
560 |
25 |
25 |
48 |
48 |
35 |
92 |
20 |
12 |
15 |
30 |
14 |
670 |
32 |
32 |
55 |
55 |
40 |
118 |
25 |
13 |
20 |
40 |
18 |
1240 |
40 |
40 |
70 |
70 |
50 |
138 |
30 |
15 |
24 |
45 |
22 |
1950 |
50 |
49 |
- |
90 |
50 |
170 |
35 |
20 |
30 |
55 |
26 |
2800 |
63 |
63 |
- |
115 |
50 |
175 |
40 |
20 |
30 |
55 |
26 |
4000 |
80 |
80 |
- |
140 |
50 |
185 |
40 |
25 |
30 |
60 |
26 |
5200 |
|
| |
 |
|
※请将吊起来的方向与螺栓轴保持同一方向进行使用。 |
|
| |
|
|
|
|
|
 |
|
|
|
|
|
