| 主体 |
材質： SCM435 |
JPJL |
銀色 |
| 表面处理： 黒色・铬 |
JPJH |
黒色 |
| 大头针 |
材質： SCM435 |
弹簧 |
材質： SWP |
|
 |
| |
|

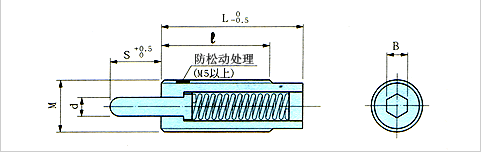

d |
S |
|
L |
B |
JPJL负荷（kgf）
Min / Max |
JPHL负荷（kgf）
Min / Max |
TYPE |
|
|
1.1 |
1..5 |
10 |
10 |
0.9 |
0.05/0.1 |
0.08/0.3 |
JPJL
JPJH |
|
|
1.1 |
3.0 |
15 |
15 |
0.9 |
0.03/0.1 |
0.08/0.3 |
|
|
1.6 |
2.0 |
15 |
15 |
1.3 |
0.1/0.2 |
0.3/0.9 |
|
|
1.6 |
4.0 |
24 |
24 |
1.3 |
0.06/0.2 |
0.2/0.9 |
|
|
2.0 |
3.0 |
20 |
20 |
1.5 |
0.2/1.0 |
0.5/2.0 |
|
|
2.0 |
5.0 |
27 |
27 |
1.5 |
0.2/1.0 |
0.3/2.0 |
|
|
2.5 |
3.0 |
25 |
25 |
2.0 |
0.6/1.0 |
0.8/3.0 |
|
|
2.5 |
5.0 |
30 |
30 |
2.0 |
0.2/1.0 |
0.5/3.0 |
|
|
3.1 |
3.0 |
25 |
25 |
1.5 |
0.6/1.0 |
1.5/3.0 |
|
|
3.1 |
5.0 |
27 |
27 |
1.5 |
0.3/1.0 |
0.8/3.0 |
|
|
3.8 |
5.0 |
30 |
30 |
3.0 |
0.6/1.5 |
0.9/5.0 |
|
|
3.8 |
10.0 |
30 |
43 |
3.0 |
0.3/1.5 |
0.8/5.0 |
|
|
5.5 |
5.0 |
30 |
30 |
4.0 |
0.6/1.5 |
1.9/5.0 |
|
|
5.5 |
10.0 |
35 |
43 |
4.0 |
0.3/2.0 |
0.8/5.0 |
|
|
5.5 |
15.0 |
35 |
51 |
4.0 |
0.3/2.0 |
0.5/5.0 |
|
|
8.0 |
10.0 |
35 |
60 |
5.0 |
0.6/4.0 |
1.3/8.0 |
|
|
8.0 |
15.0 |
35 |
60 |
5.0 |
0.4/4.0 |
1.3/8.0 |
|
|
8.0 |
20.0 |
35 |
85 |
5.0 |
0.5/4.0 |
1.0/8.0 |
|
|
8.0 |
30.0 |
35 |
125 |
5.0 |
0.3/4.0 |
0.7/8.0 |
|
|
8.0 |
40.0 |
35 |
125 |
5.0 |
0.5/4.0 |
0.7/8.0 |
|
|
8.0 |
50.0 |
35 |
155 |
5.0 |
2.0/5.0 |
3.0/8.0 |
|
|
8.0 |
60.0 |
35 |
159 |
5.0 |
0.5/5.0 |
0.4/8.0 |
|
|
8.0 |
70.0 |
35 |
185 |
5.0 |
0.35/5.0 |
0.56/8.0 |
|
|
8.0 |
80.0 |
35 |
185 |
5.0 |
2.0/5.0 |
3.0/9.5 |
|
|
10.0 |
15.0 |
45 |
60 |
8.0 |
2.0/10.0 |
4.8/22.0 |
|
|
14.0 |
20.0 |
45 |
70 |
12.0 |
2.8/12.0 |
5.4/28.0 |
|
|
| 特徴：防松动处理完成 |
| |
|
|
|
|
|
 |
|
|
|
|
|
